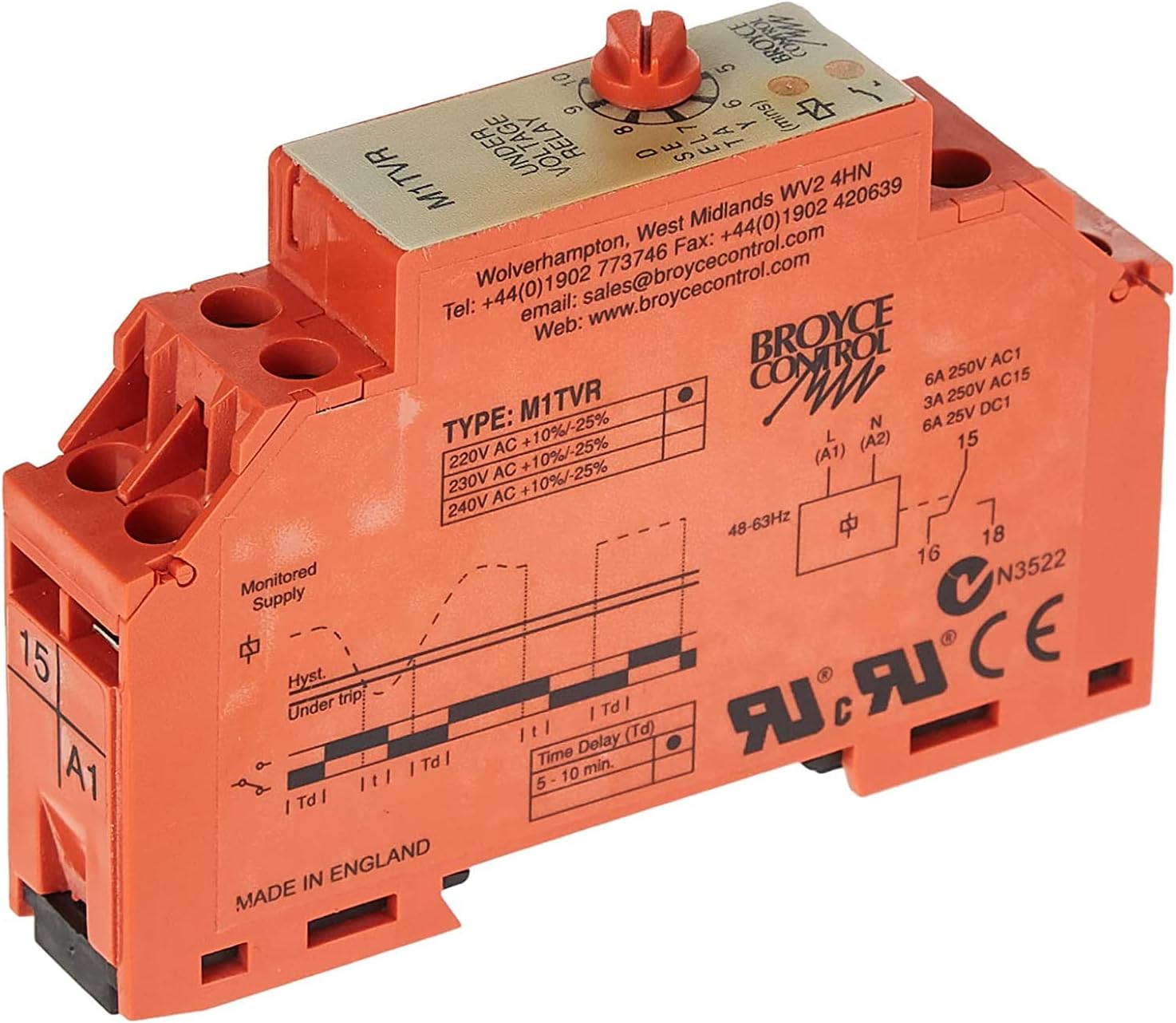

Broyce Control UVR Single-Phase Under-Voltage Monitoring Relay 230V M1TVR

Dhs. 855.00 AED

~~Dhs. 85.00 AED~~ Dhs. 855.00 AED

Sale Sold out

Default Default

About this item

Made in the United Kingdom by Broyce Control, under-voltage monitor monitors its own single-phase supply

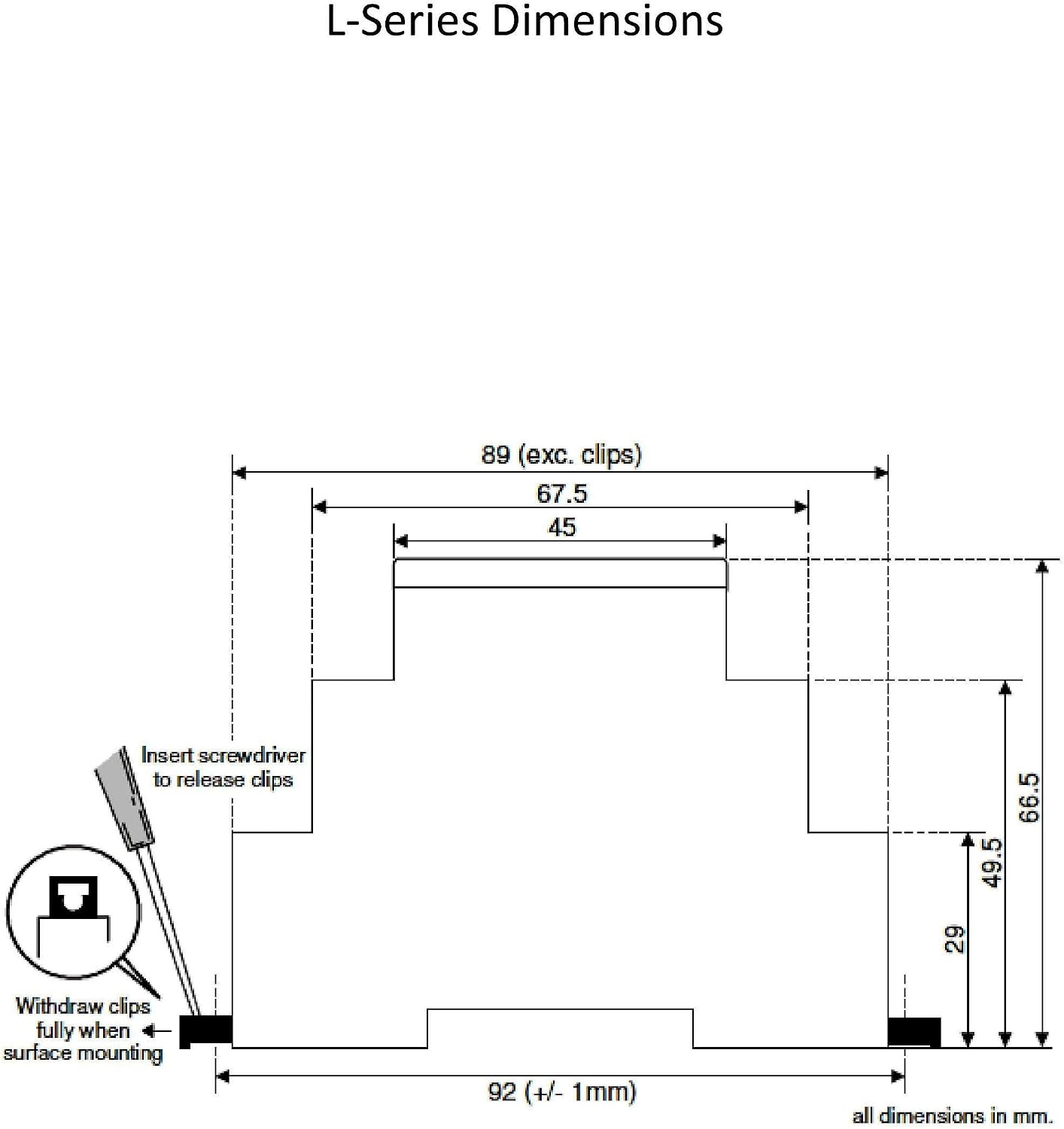

Fixed trip level, adjustable restart time delay, monitoring function: under-voltage, monitored AC voltage: 230V AC L>N 50/60Hz, under trip level: 75%, hysteresis: ≈2%, restart time delay: 5 – 10 seconds, output: SPDT 6 amp at 250V (AC1), dimensions (mm): width: 17.5 x height: 89 x depth: 66.5
Designed using the latest technologies. It achieves high grades in terms of functional performance.
SPDT relay output, 17.5mm width, DIN rail mount, red LED flashes during the restart delay period (Td) to confirm that the supply is above the fixed trip level and meets Dubai Electricity & Water Authority regulations (Section 8.2)*

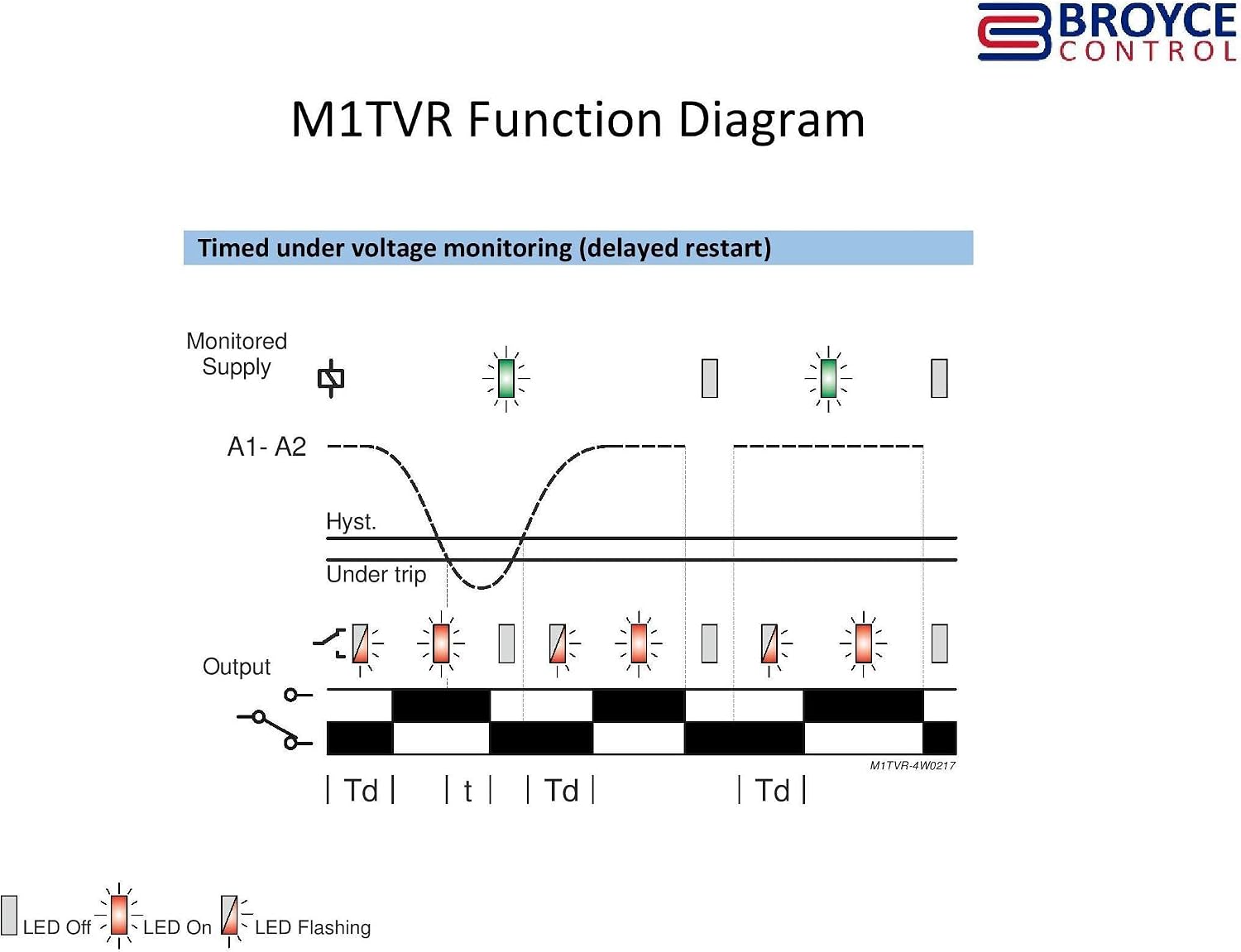

When power is applied, the output relay will be activated after the specified delay period, provided that the monitored voltage is above the fixed under-voltage trip level. The relay will lose power if the voltage drops below the operating level.

Description

Brand: Broyce Control. Type: Single-Phase Under-Voltage Monitoring Relay. When energised, the output relay will activate after the set time delay provided the monitored voltage is above the fixed under-voltage trip level. The relay will de-energise if the voltage drops below the trip level. M1TVR. Country of Origin: United Kingdom (UK). Single-phase under-voltage monitoring relays feature a fixed adjustable trip level, restart time delay, SPDT relay output, 17.5mm width, DIN rail mounting, and monitoring function. Under-voltage monitor: 230V AC L>N 50/60Hz. Under trip level: 75%. Hysteresis: ≈2%. Restart delay time delay: 5 – 10 seconds. Output: SPDT 6A @ 250V (AC1). Dimensions (mm): Width: 17.5 × Height: 89 × Depth: 66.5.

Product Details

Property	Value
ASIN	B07N6PV58K
Product Dimensions	8.9 x 6.7 x 1.8 cm; 300 g
Manufacturer	Broyce Control
Date First Available	January 28, 2019
Item Model Number	M1TVR
