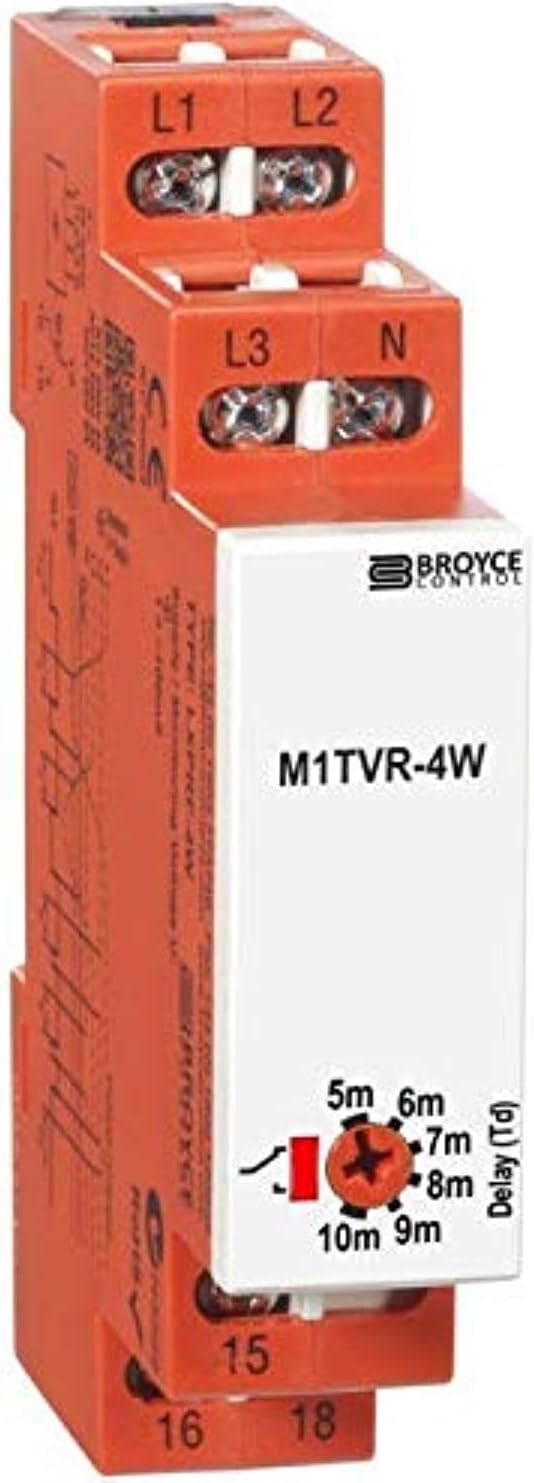

Uvr3 Phase Power Strips & Surge Protectors (400V 5-10 Min M1Tvr-4W)

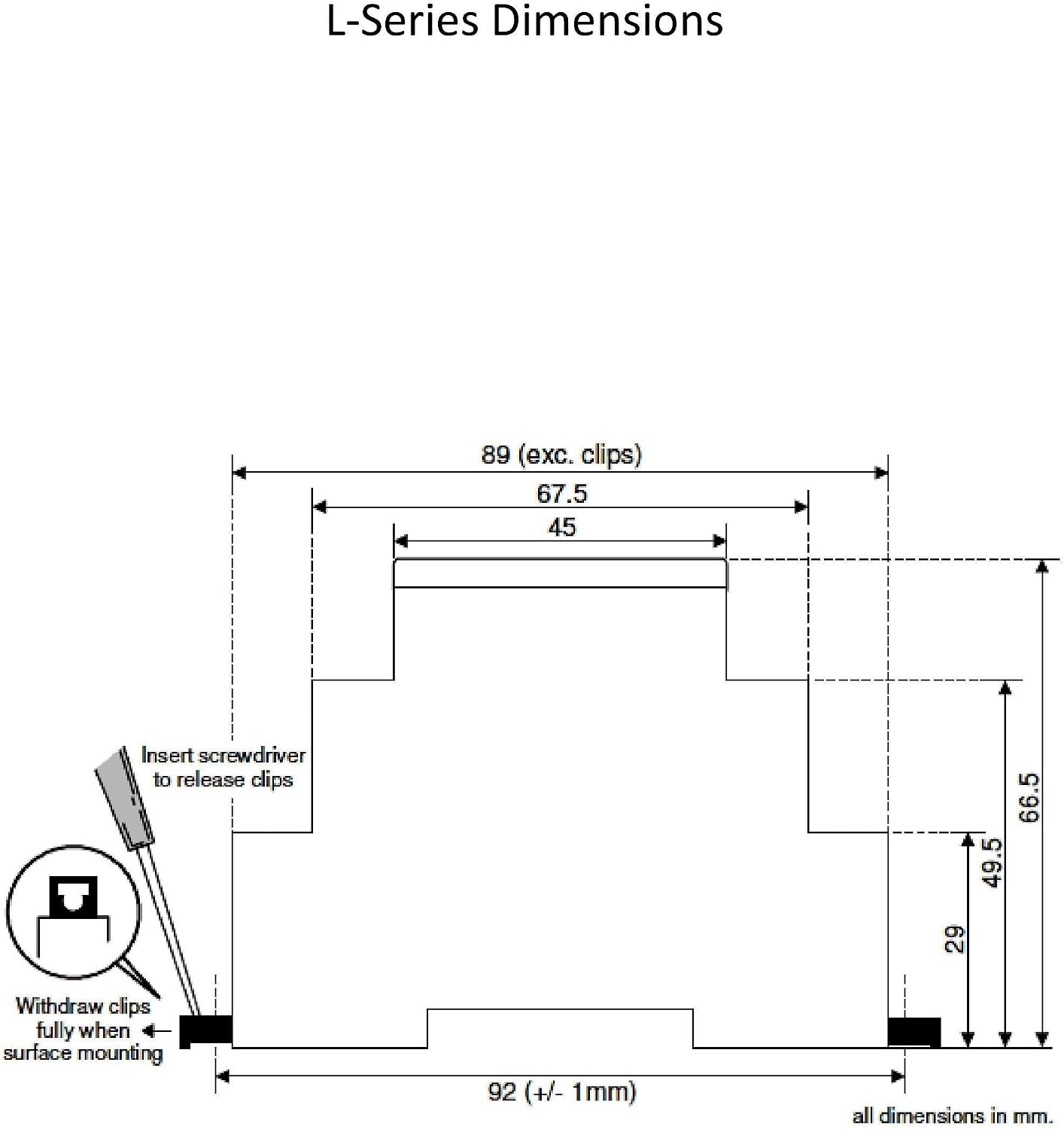

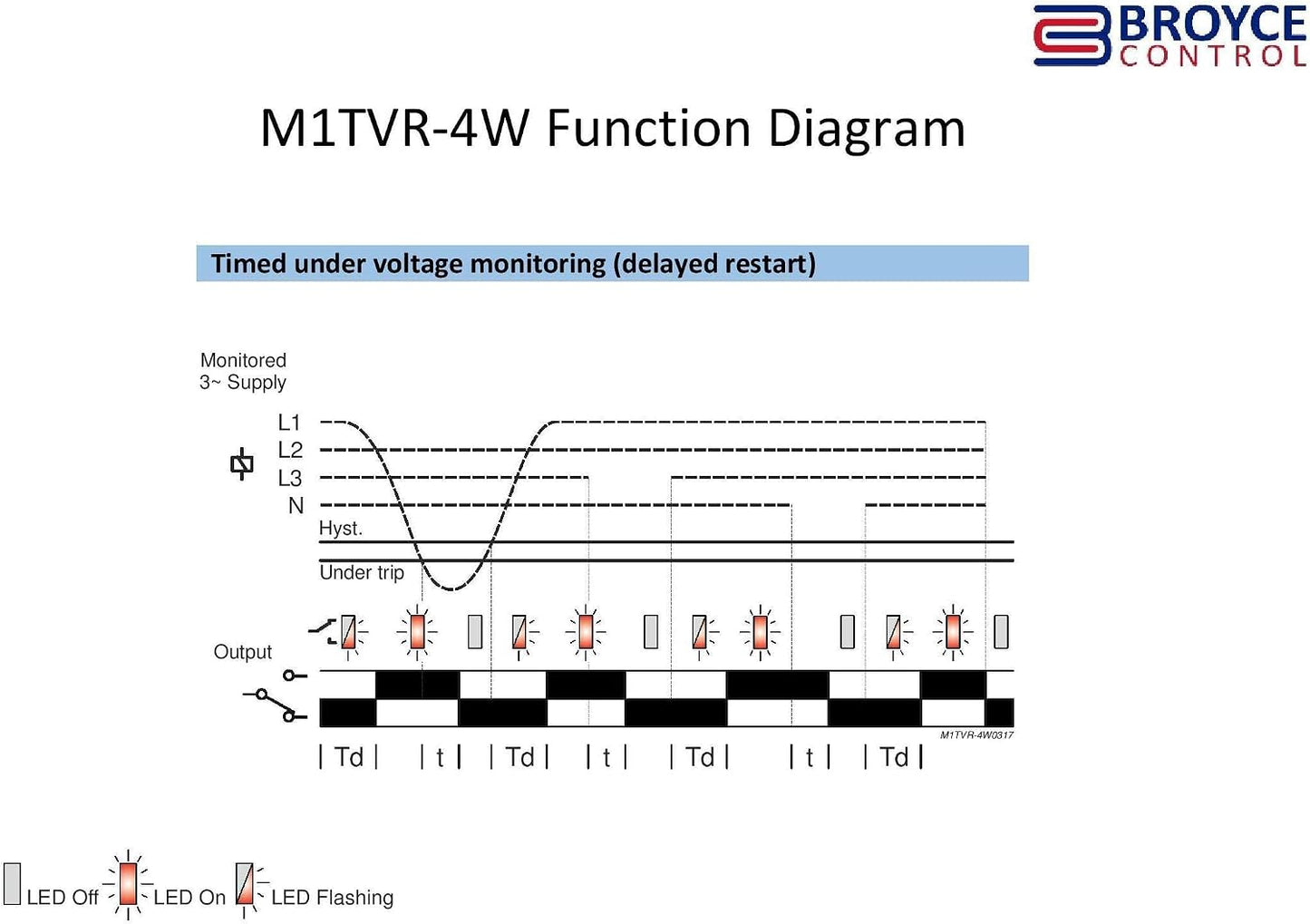

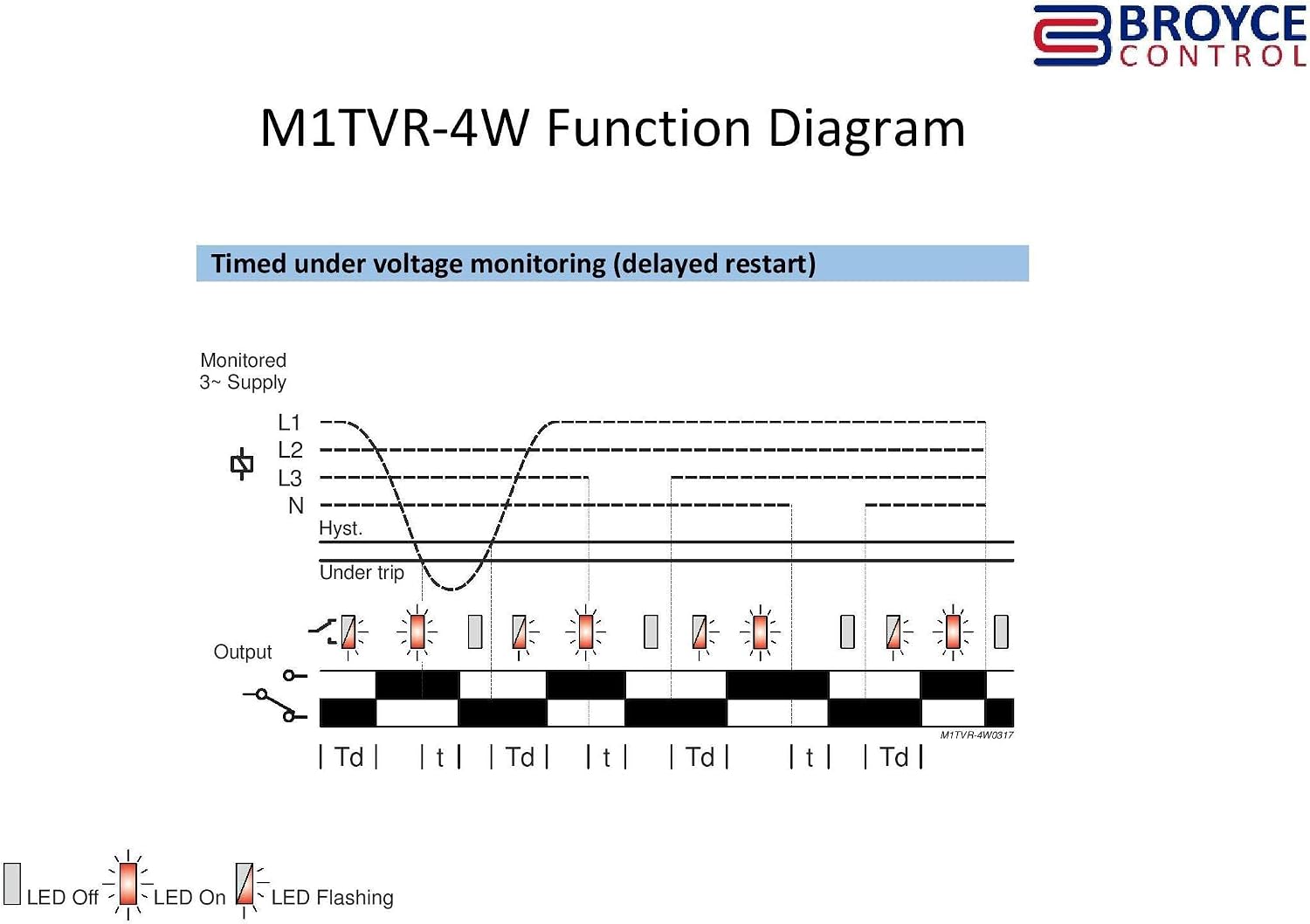

Brand: Broyce Control. Type: 3-Phase Under-Voltage Monitoring Relay. When energised, the output relay will activate after the set time delay, provided the monitored voltage is above the fixed under-voltage trip level. The relay will de-energise if the voltage in one or more phases drops below the trip level. M1TVR-4W. Country of Origin: United Kingdom (UK). Under-voltage monitoring relays feature a three-phase, 4-wire fixed adjustable trip level, restart time delay, SPDT relay output, 17.5 mm width, and DIN rail mounting monitoring function. Under-voltage monitor: 230V AC L-N. Under trip level: 75%. Hysteresis: ≈2%. Restart delay time delay: 5 – 10 min. Output: SPDT 6A @ 250V (AC1). Dimensions (mm): Width: 17.5 × Height: 89 × Depth: 66.5.
